Indra Purnama
11108021
3KA15
Jaringan Komputer
Objective
- Create a simple network with two PCs using a switch
- Identify the proper cable to connect the PCs to the switch
- Configure workstation IP address information
- Test connectivity using the ping command.
Background / Preparation
- Two workstations with an Ethernet 10/100 NIC installed
- Ethernet 10BaseT or Fast Ethernet hub
- Several Ethernet cables, which are straight-through and crossover, to choose from for connecting the two workstations
Step 1 Identify the proper Ethernet cable and connect the two PCs
- The connection between the two PCs and the switch will be accomplished using a Category 5 or 5e straight-through patch cable. Locate two cables that are long enough to reach from each PC to the switch. Attach one end to the NIC and the other end to a port on the switch. Be sure to examine the cable ends carefully and select only a straight-through cable.
- What kind of cable is required to connect from NIC to hub? Straight Through Cable
- What is the category rating of the cable? Category 5 or 5e
- What is the AWG wire size designation of the cable? 24 AWG
Step 2 Verify the physical connection
- Plug in and turn on the computers. To verify the computer connections, insure that the link lights on both NICs are lit. Are both link lights lit? They should be, otherwise troubleshoot.
Step 3 Access the IP settings window
Note: Be sure to write down the existing IP settings, so that they can be restored at the end of the lab. These include IP address, subnet mask, default gateway, and DNS servers. If the workstation is a DHCP client, it is not necessary to record this information.
Windows 95 / 98 / Me/ users should do the following:
- Click on Start > Settings > Control Panel and then click the Network icon.
- Select the TCP/IP protocol icon that is associated with the NIC in this PC and click on Properties.
- Click on the IP Address tab and the Gateway tab.
Windows NT / 2000 users should do the following:
- Click on Start > Settings > Control Panel and then open the Network and Dial-up Connections folder.
- Click ad open the Local Area Connection icon.
- Select the TCP/IP protocol icon that is associated with the NIC in this PC.
- Click on Properties and click on Use the following IP address.
Windows XP users should do the following:
- Click on Start > Settings > Control Panel and then click the Network Connection icon.
- Select the Local Area Network Connection and click on Change settings of this connection.
- Select the TCP/IP protocol icon that is associated with the NIC in this PC.
- Click on Properties and click on Use the following IP address.

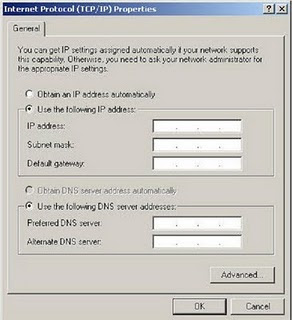

See the example below:
Step 4 Configure TCP/IP settings for the two PCs
- Set the IP address information for each PC according to the information in the table.
- Note that the default gateway IP address is not required, since these computers are directly connected. The default gateway is only required on local area networks that are connected to a router.
Computer | IP Address | Subnet mask | Default Gateway |
---|---|---|---|
PC – A | 192.168.1.1 | 255.255.255.0 | Not Required |
PC – B | 192.168.1.2 | 255.255.255.0 | Not Required |
Step 5 Access the Command or MS-DOS prompt
Use the Start menu to open the Command Prompt (MS-DOS-like) window:
Windows 95 / 98 / Me users should do the following:
Start > Programs > MS-DOS Prompt
Windows NT / 2000 users should do the following:
Start > Programs > Accessories > Command Prompt
Windows XP users should do the following:
Start > Programs > Accessories > Command Prompt
Step 6 Verify that the PCs can communicate
- Test connectivity from one PC to the other by pinging the IP address of the opposite computer. Use the following command at the command prompt.
- Look for results similar to those shown below. If not, check the PC connections and TCP/IP settings for both PCs. What was the ping result?
Step 7 Confirm the TCP/IP network settings
Windows 95 / 98 / Me users should do the following:
- Type the winipcfg command from the MS-DOS Prompt. Record the results:
Windows NT / 2000 / XP users should do the following:

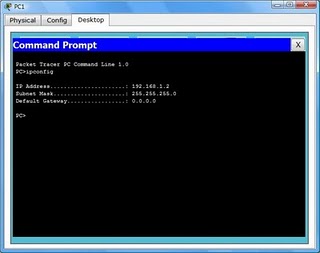

- Type the ipconfig command from the Command Prompt. Record the results:
